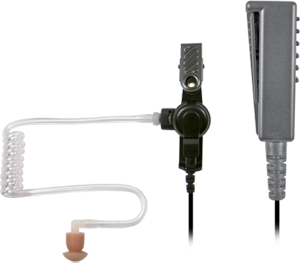

SPM-2300 Series professional air tube headset, is a professional monitoring, duty headset, collar clip and hand-held dual-purpose microphone design, microphone and PTT controller with a separate cable, easy to operate and wear.



























Specification parameters
Operating temperature	-20oC～55oC
Microphone operating voltage	1-10V
Microphone sensitivity	-38±3dB
Horn sensitivity	114±3 dB
Horn rated power	10mW
Micr impedance	2.2KΩ 3V
SPEAKER Frequency response	100-10KHZ
MIC Frequency response	100-10KHZ
Horn impedance	32Ω

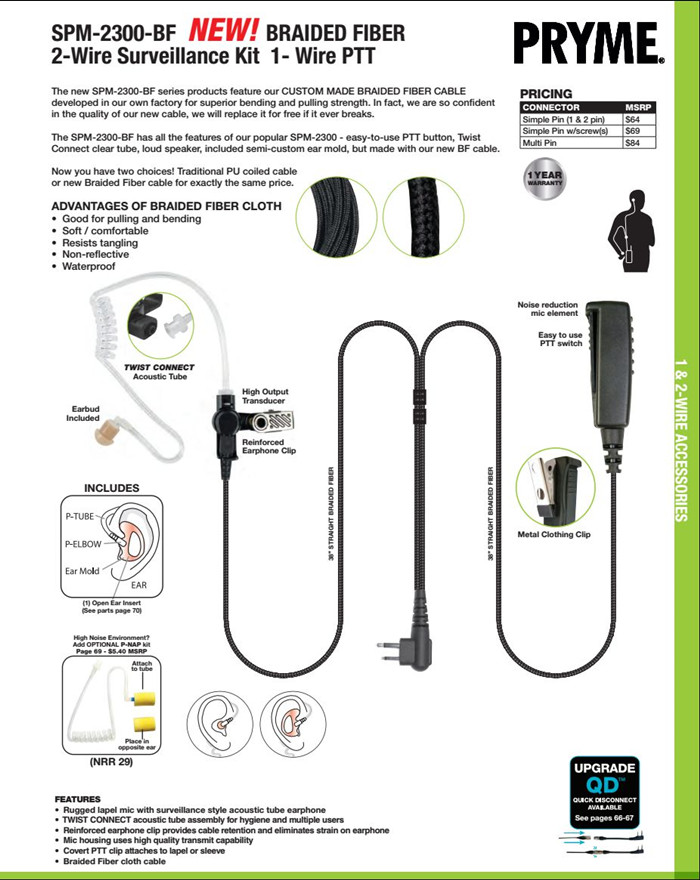

Optional high-profile version：SPM-2300-BF



High distribution version provides high elastic fabric cable outer layer more soft and anti-pulling, using the outer design of the cable has a higher durability, and anti-winding knot, anti-reflective.













Replaceable parts：



●High quality air duct





●Double-layer noise-proof silicone earplugs







●Soft silicone ear frame (specification: large, medium, small, left ear, right ear)









●Professional sponge earplugs (packing for 3 Units 1)









●Flexible high-rebound sponge earplugs











For radios cable connection enquiries, please click on this link
