Overview
----The Global Positioning System is the latest in a long line of innovative radios designed and tested in a harsh environment, he can use it with most two-way radios. In addition to operating like a normal microphone, the Global Positioning System GPS can also detect the users location, and the real-time location information can be automatically transmitted to the central GIS (Location Information System) platform according to the return settings of the system center.

----When the location information is sent to the system center, the user can see the location of all units (personnel, vehicles, etc.) using GPSMIC on the map information system provided by US or owned by the user by decoding the BSU and transmitting the data to the server. The system can be applied to all industries that use radios and need personnel, vehicle dispatch or location check, such as: logistics, public security, fire, forestry, oil exploration and exploitation, customs, urban management, traffic, Maritime Bureau, Taxi, dangerous goods transport, etc. .

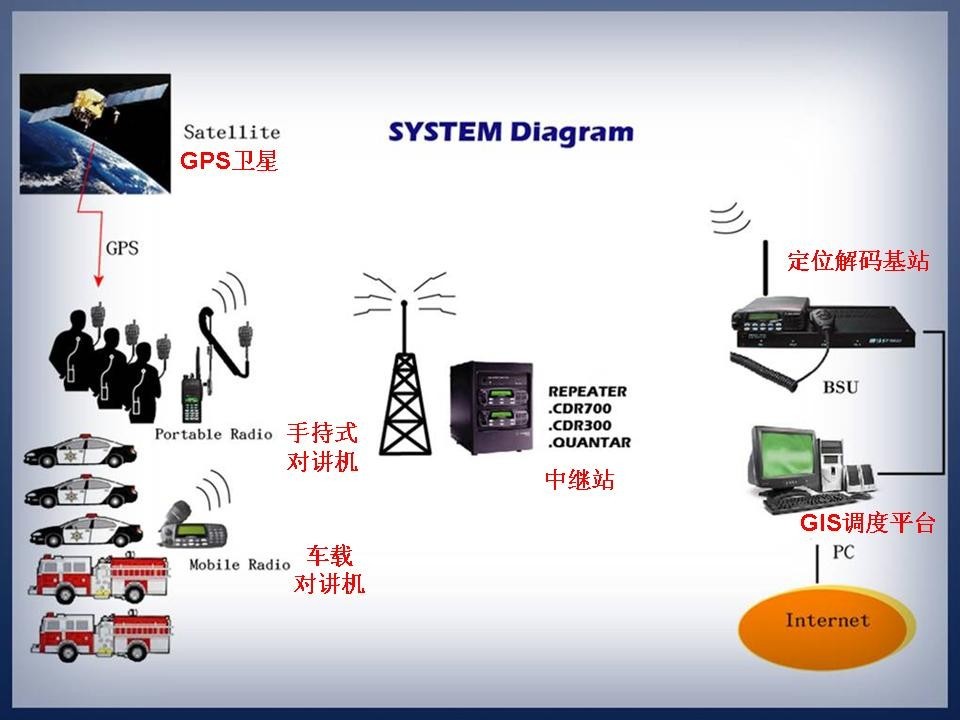

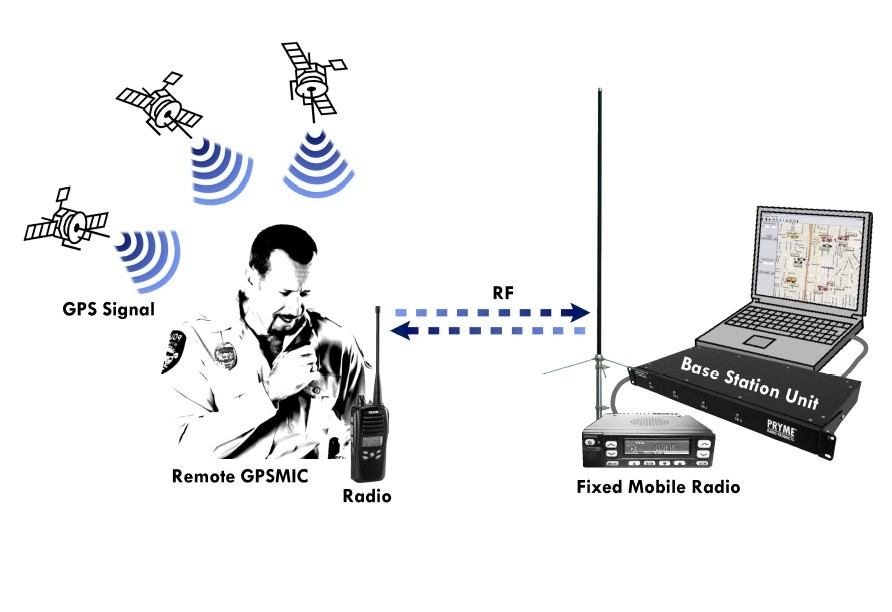

Locate the structure diagram for PRYME GPSMIC









PRYME GPSMIC^TM

1.       GPS positioning information and other information can be transmitted using existing uncompressed radio audio channels without the need for additional dedicated data channels.

2.       The system platform can be established independently or integrated into the existing map platform system. We provide an API (application programming interface) for users of existing systems that allows GPSMIC to work closely with other mapping and system software.

3.       We provide GPSMIC with base station function, which is simple and can be installed independently.

4.       The GIS control system software PRYME GPSMIC CHECKPOINT, which can define groups or individual users, can call the location view of groups or individuals according to different management perspectives.

5.       Enhanced return and identification protocols ensure that the location information is returned even in weak signal situations.

6.      Use NMEA 2.0GCA and RMC standard information to enhance positioning and navigation.

7.      The base station or system center can request location information from any group or individual whenever needed.

8.       Upgradeable software ensures that new features are added or original features are corrected in the future

9.       Automatic position return is only performed when the microphone detects a clear channel to avoid interference with other communication frequencies. Note that not all radios have RSSI and signal monitoring capabilities





----- -- ------ ------ -----











GPSMIC positioning terminal series products list

GPS Models	Scope of application	Interface type	Product drawings

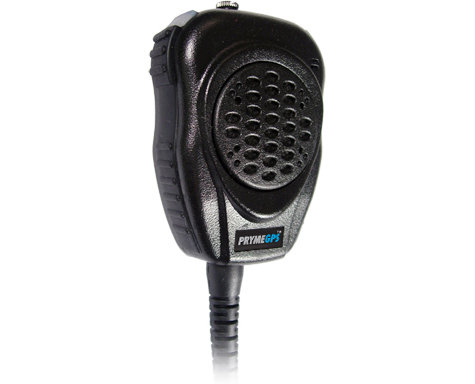

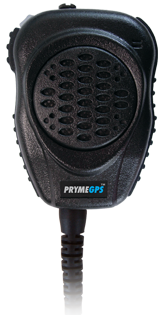

GPS-4100P	Applicable to all analog radios (built-in Battery)	Replaceable interface

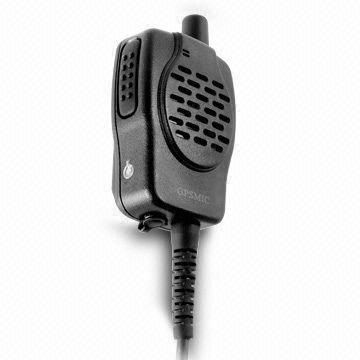

GPS-5100P	Applicable to all analog radios(built-in Battery)	Fixed interface
GM22-K2	GPSMic for Kenwood multi-pins radio compatible with Fleetsync KENWOOD NX-200/NX-300/TK-5210/TK-5310/TK-5410/TK-5520/TK-5320/TK-2180/TK-3180 Baud 9600,Sensitivity -160dBm,Cold Start 28Seconds (power from radio)	Fixed interface
GM22-K1	GPSMic for Kenwood simple pins radio compatible with Fleetsync KENWOOD TK-2170/TK-3170/TK-2360/TK-3360/ TK-2312/TK-3312 Baud 9600,Sensitivity -160dBm,Cold Start 28Seconds (power from radio)	Fixed interface
GM22-K1-24	KENWOOD TK-2407/TK-2412 special edition (power from radio)	Fixed interface
GPSD-K2	GPS Dongle for Kenwood Nextedge NX-200/NX-300	Fixed interface
GPSD-KM	GPS Dongle for Kenwood Nextedge NX-700 NX-800 Mobile Radio	Fixed interface
GM22-S5	GPSMic for ICOM F50,F50V Baud 9600,Sensitivity -160dBm,Cold Start 28Seconds (power from radio)	Fixed interface
GPSD-S5	GPS Dongle for ICOM F50,F50V Baud 9600,Sensitivity -160dBm,Cold Start 28Seconds (power from radio)	Fixed interface











For radios cable connection enquiries, please click on this link
