P-SNAP series of professional high-end intercom headphones, can be used in a variety of working environments, the unique top earphone quick-install design can make the earphone ready according to the application environment to switch headphones, the collar clip microphone can filter the ambient noise and ensure the clarity of the call. The PTT call control button adopts the double-trigger switch technology to ensure that the button can be easily triggered by pressing the button at all angles.









































































Product characteristics：

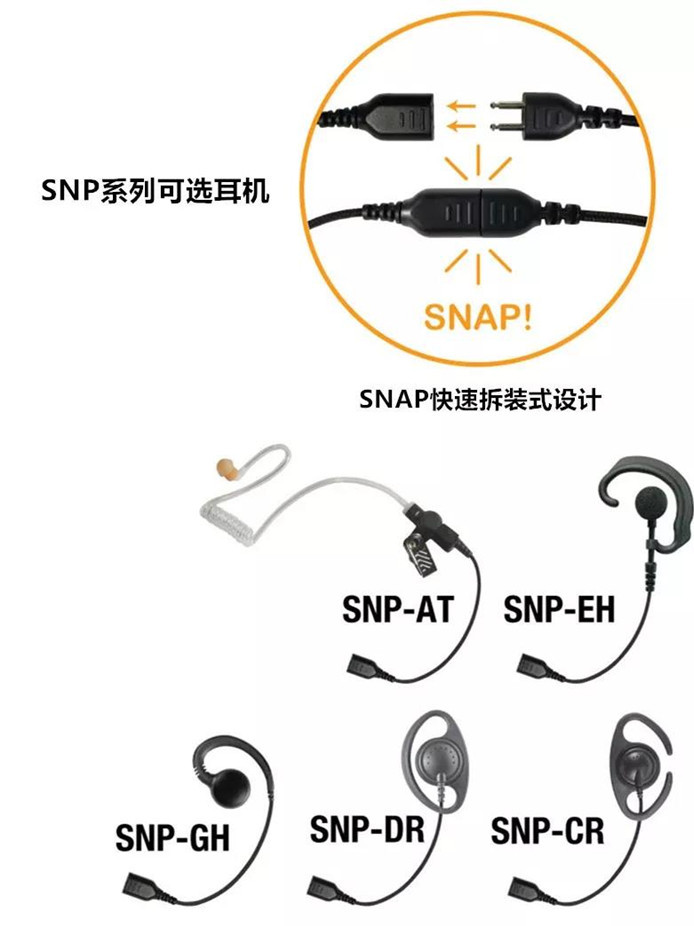

●Small two-pin Plug, easy to replace all types of headphones at the top



●High-stretch woven fabric cable is softer and more resistant to pulling, cable built-in kevlar pull-resistant layer



●The controller features a rugged polyester housing with a noise-canceling microphone that effectively overcomes ambient noise



●PTT dual trigger switch technology, 10000 times (60 times/min) trigger test, PTT button more durable.



●Waterproof cable.



●Three years extended warranty.



Product specifications：

●Sensitivity：45±5db 1kHz VS = 2.0V，RL = 2.2kΩ（0dB = 1V／PA）

●Operating voltage：＜10v

●Current consumption：＜0.5ma

●Signal/noise ratio：＞50db

●Frequency response：100 ~ 10000hz

●Operating temperature： -20±2℃~ +60±3℃
