PRYME POC Communication management system

Based on GIS, GPS, GSM/WCDMA, LTE and POC, the public network cluster cooperative command and dispatch platform relies on 3G and 4G networks, integrated and visual co-scheduling and resource monitoring system for daily management and emergency command needs of industry customers.

图1协调通平台建设思路



Mobile phone intercom (POC) applications:

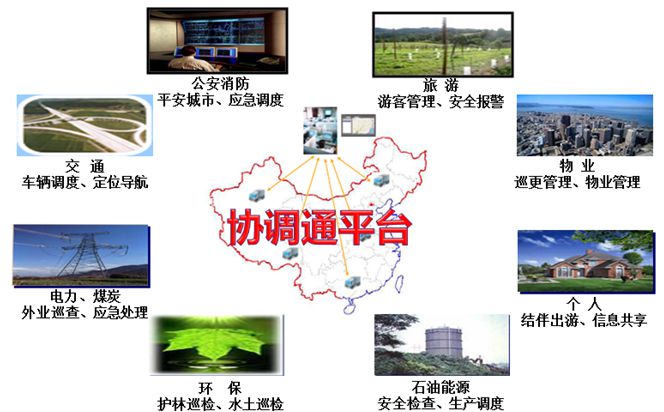

图2平台主要应用领域

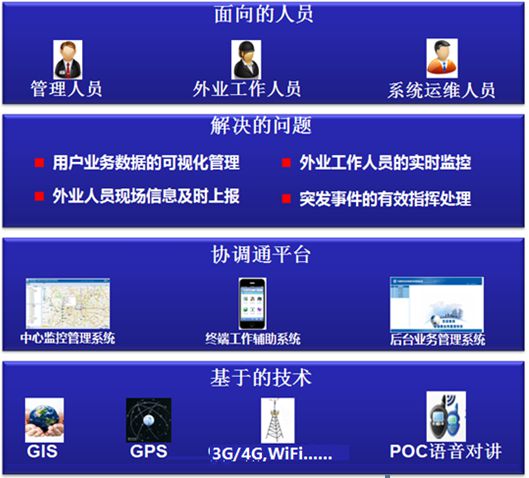

The platform consists of three application systems: the Central Monitoring Management System, the terminal work assistant system and the background business management system, and the traditional intercom integration gateway four systems, the relationship between the four systems is illustrated in the following figure:

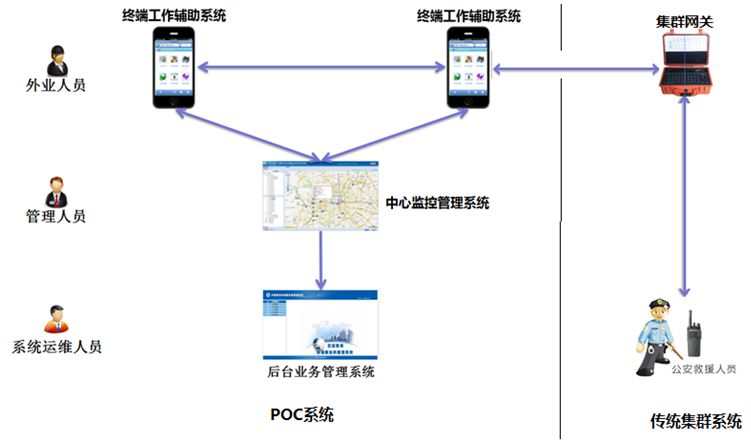

图3平台包含系统关系图



中心监控管理系统

Electronic maps

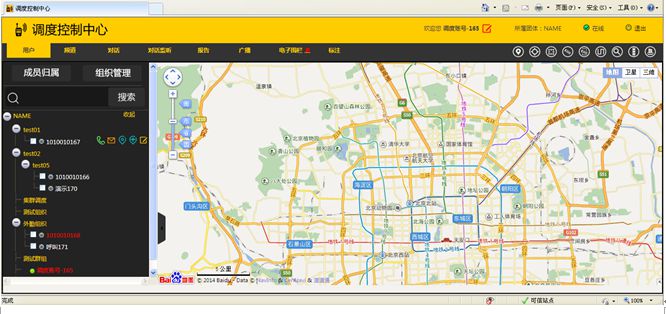

Electronic map basic operations map browsing electronic map zoom, Zoom, roaming, full map and other basic browsing operations, eagle-eye navigation and other operations.



图4电子地图基本操作

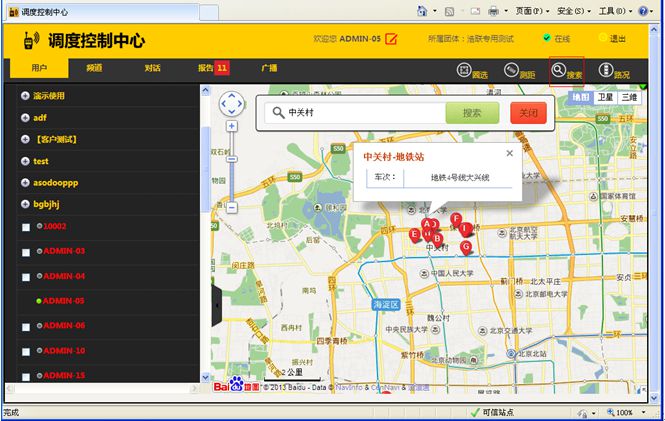

E-map basic operation map browse e-map basic operation object query nationwide, based on the province and city, the scope of the current view of the name query, circular and rectangular space query.

图5地物查询电子

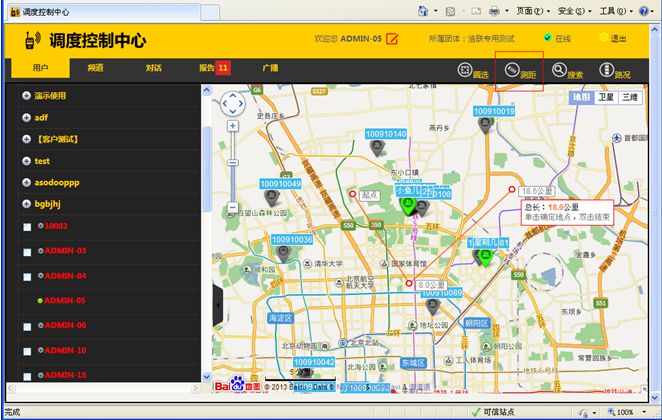

The map basic Operation Calculation and analysis system provides the distance calculation function.



图6量算分析

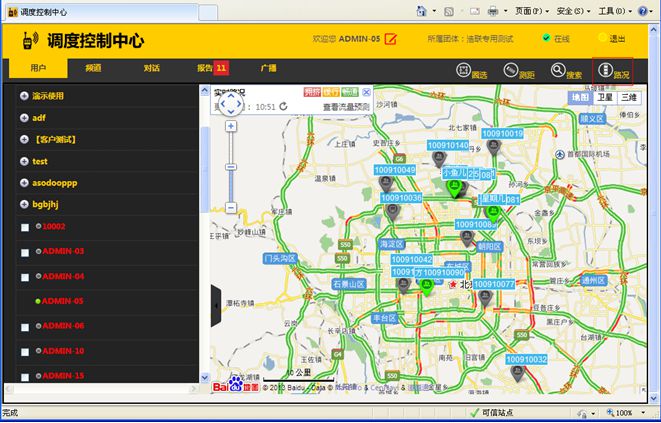

Map basic operation real-time road condition system support Beijing, Shanghai, Shenyang, Shenzhen, Chengdu, Chongqing, Guangzhou and Nanjing and other major cities real-time road condition data display and operation.



图7实时路况



Map basic operations note management system to support users to add information points, edit and delete attribute information operations, and support the display of information points, hiding and other operations.



图8标注管理



Personnel location monitoring

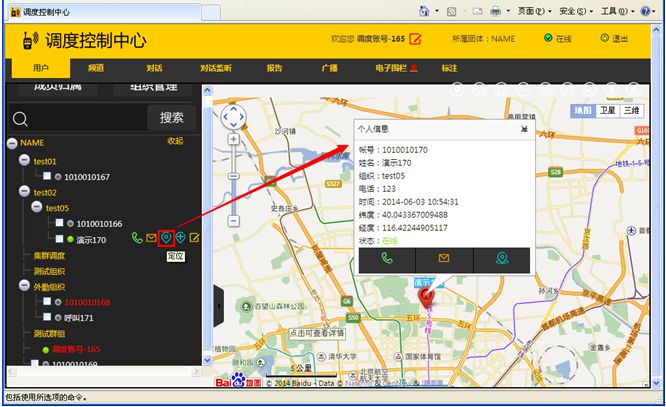

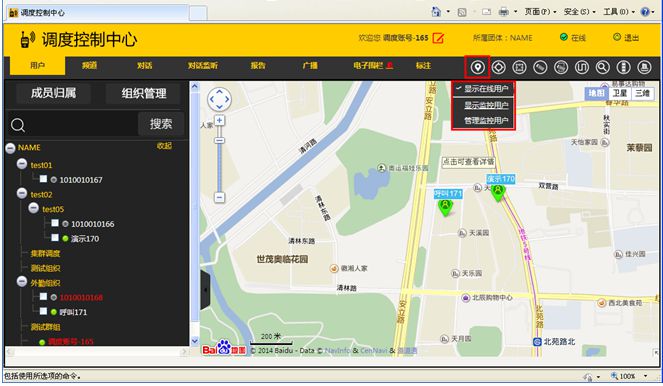

Location monitoring real-time location managers can locate and query the current location of all or selected field personnel at any time, and the query results will be displayed directly on the map, the system provides several positioning methods: location subscription and real-time tracking.



图9人员实时定位



Personnel positioning monitoring history track playback the manager can play back any field personnel in any time range of history track, playback results will be displayed directly on the electronic map, and can carry on the track replay the operation control.



图10历史轨迹回放



Voice intercom management

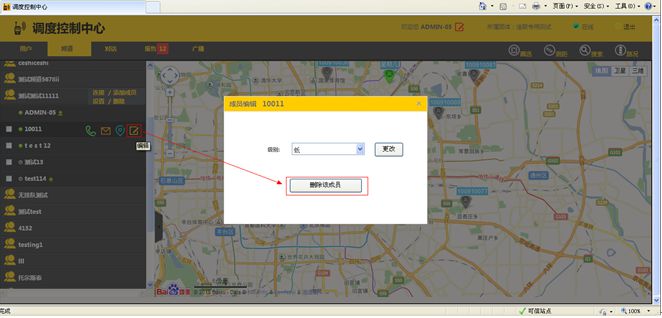

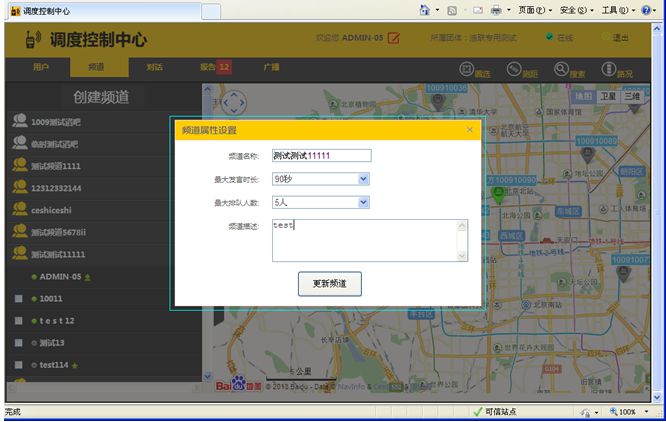

The system provides two groups of people:

1.List-based people selection group: select the appropriate people from the tree list, task group or pre-group to add;

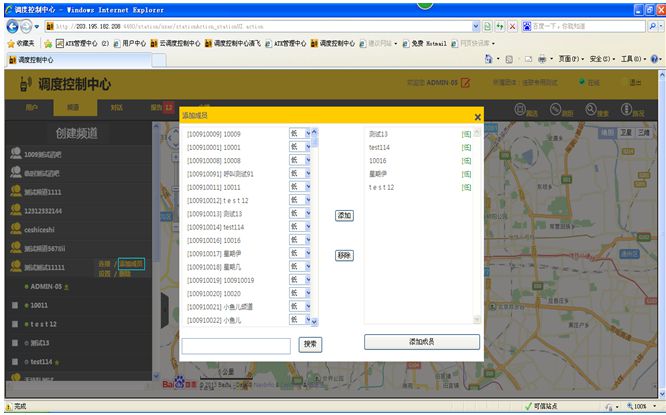

2.Group selection based on spatial location: select a certain range of people by circle selection or rectangle selection, and add task group or pre-group。



图11基于空间位置的成组管理

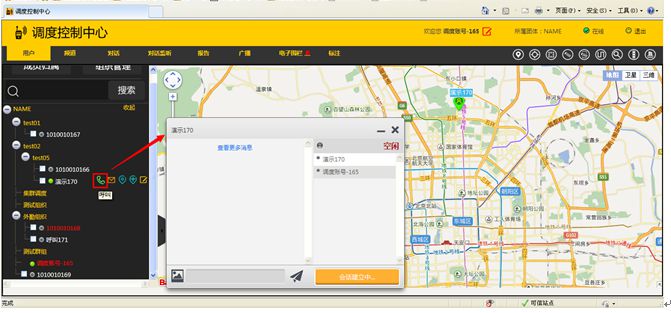

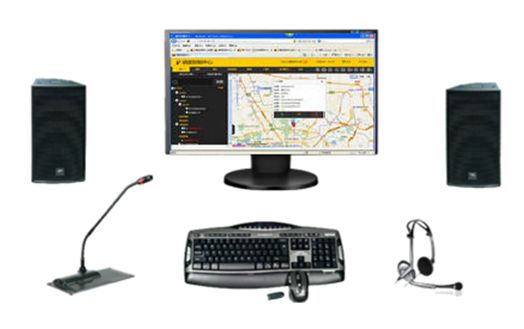

Voice intercom management voice intercom managers can communicate with field personnel through computers in their offices in a variety of ways, supporting multiple ways of calling field personnel point-to-point, group, and ad hoc groups, facilitate the delivery of tasks and day-to-day communication.





图12中心语音对讲

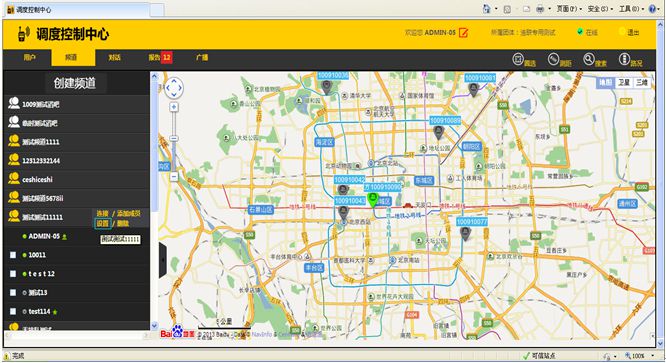

图13中心语音对讲



Information exchange

The monitoring center and the terminal support the two-way communication of the short message, the center monitoring system provides the management operation of receiving the short color message, such as inquiry, deletion, etc. .



图14彩信发送

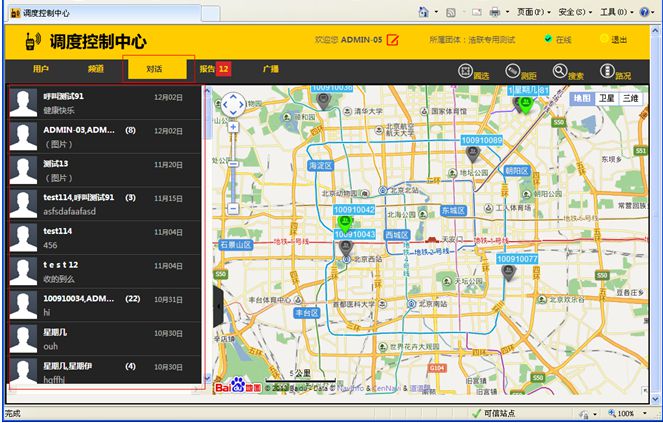

图15通信信息管理



Terminal upload information management

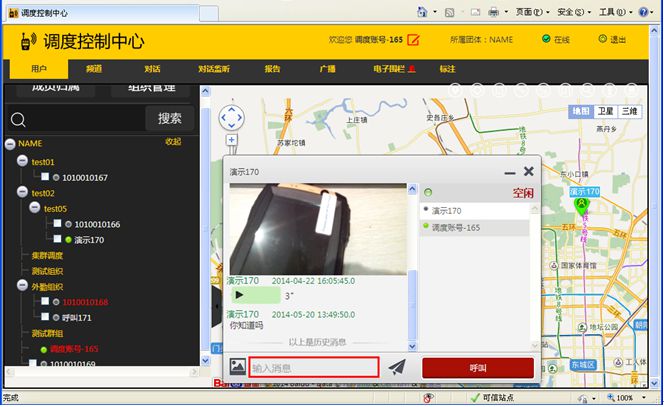

The central monitoring system supports the uploading of text information, photos and video information collected by the terminal, and the inquiry and management of the uploading information based on the spatial location or the uploading personnel.



图16通信信息管理

Terminal work assist system

Upload location information

The terminal automatically uploads its position information in real time within the time range set, and the uploading frequency is set by the system setting module.

Voice intercom

Dedicated mobile phone terminal can be used as a mobile phone to achieve voice, SMS and other business applications, but also as a walkie-talkie to complete instant messaging, work together, kill two birds with one stone, perfect integration.
1.One-press-and-go, fast and convenient: with professional cluster intercom performance, one-press-and-go, to meet the user's fast and convenient communication requirements.
2.Group call, one hundred answer: once a group call is initiated, all members of the group can participate in the conversation, truly achieving “One answer for all”.
3.Group information, automatic update: it is convenient to synchronize the group information of the system and the terminal without human intervention, and the work can respond in time.

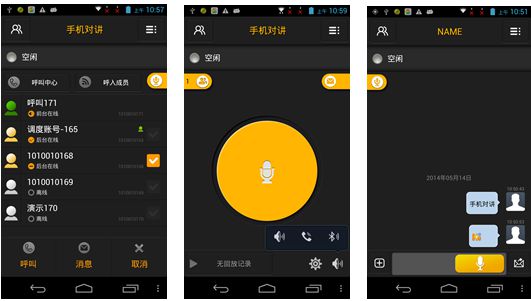

图17手机对讲系统

On-site information upload

The terminal takes photos and video, and adds relevant description information, such as name, time, informant and information description, to the monitoring center.

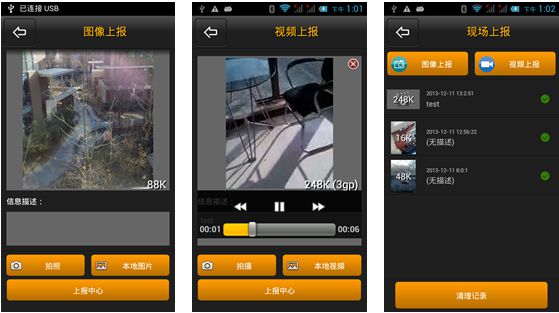

图18图片/视频信息上传



Background Business Management System

Department management

To achieve the user unit department of the ADD, modify and delete operations.



图19部门管理



Personnel Management

To achieve the user unit personnel information to add, modify and delete operations.



图20人员管理

Terminal management of intercom equipment

Implement the ADD, modify and delete operation, support the import operation of specified format (* . Excel) data files, and support the group management of terminal devices.



图21对讲终端设备管理

System settings

It system administrator the configuration of the system's operating parameters, such as user name, contact information, etc. .



图22系统设置



Cluster intercom network manager

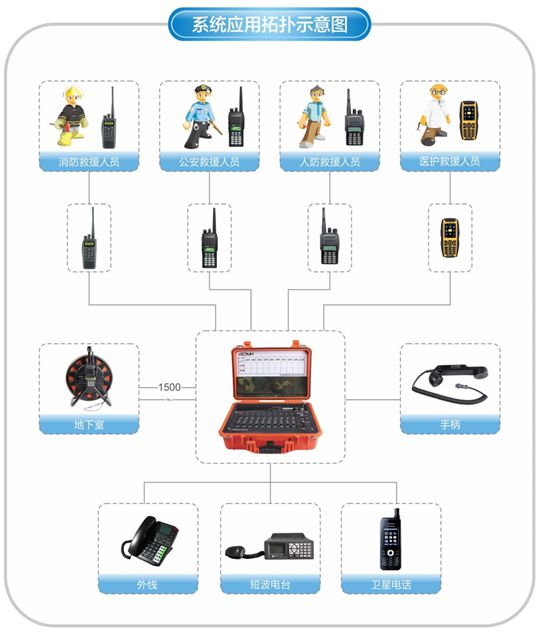

The emergency communication interconnect terminal is used to deal with the emergency when the emergency rescue scene commanding personnel in different industries and different departments cooperate in the rescue, the wireless communication equipment carried by each department is designed for unified voice dispatch of Emergency Command to provide unified communication services across platforms. To achieve a variety of different frequencies, different standards of trunking intercom system, fixed telephone, POC and other wireless communication equipment interconnection.



Connect to a traditional cluster

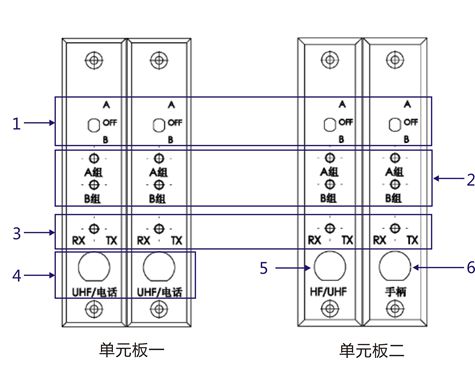

图26集群网关面板



1. Packet Switch: the terminal of the access device is divided into a/B two groups;

2. Group Indicator: the group of light indicating terminals;

3. Status Indicator: color-coded channel status (transmit/receive) ;

4. Terminal interface: can access walkie-talkies, cell phones, walkie-talkies, wired phones, microphones, etc.

5. Terminal interface: access to shortwave radio, walkie-talkies, cell phones, walkie-talkies, wired phones, microphones, etc. . 6. Handle Interface: special, only access to the handle. For example, a 350-megabit headphone cable can be connected to the first terminal interface in cell 1 when a 350-megabit frequency point is needed to connect with a group of POC, then the dedicated POC mobile phone audio cable and the second terminal interface can be connected
