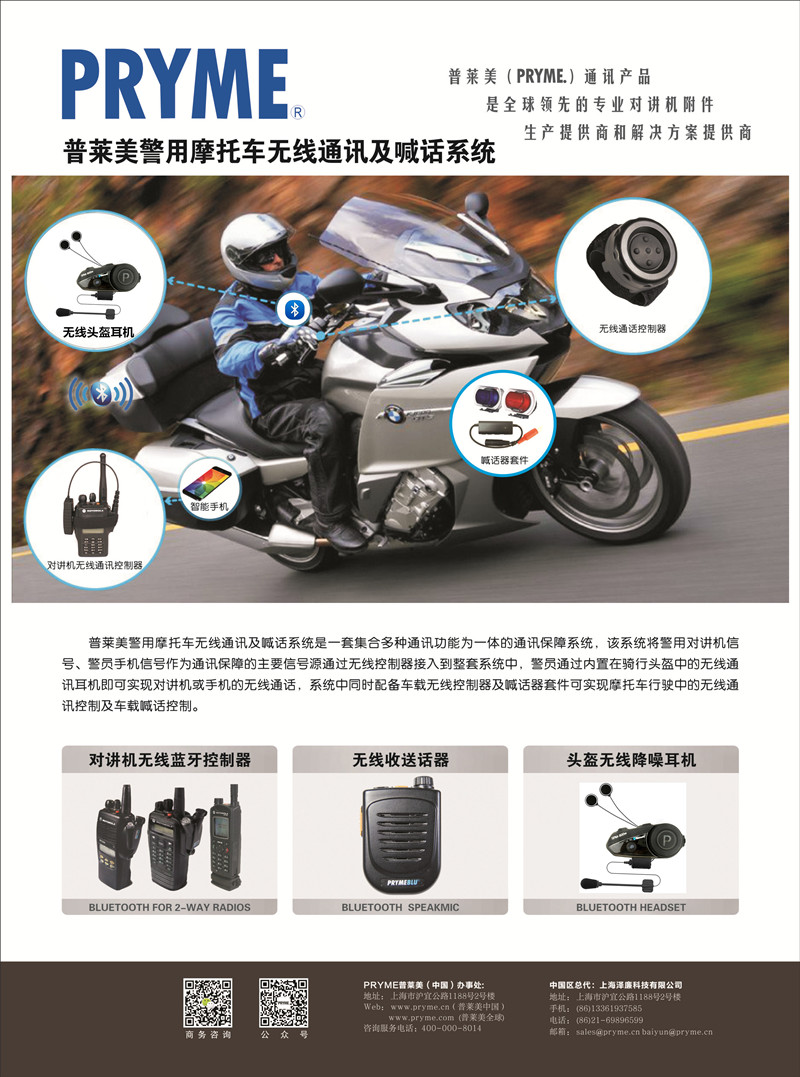

The motorcycle needs flexible communication mode and convenient operation mode, the traditional wired communication mode can not satisfy the complex communication environment now, the PLAMEX Bluetooth wireless vehicle communication control system can effectively solve the problems of real-time communication and convenient operation in motorcycle running. By installing a bluetooth-integrated controller on the rider's walkie-talkie, the company allows the operator to use helmet-mounted wireless headphones to communicate wirelessly with the walkie-talkie and make calls wirelessly over Bluetooth on the phone. The system is easy to install and does not need to destroy any existing circuit facilities of the vehicle. It only needs to fix the helmet-type Bluetooth headset on the riding helmet and install the integrated Bluetooth controller on the walkie-talkie, the wireless PTT controller can be installed on the handlebars, and the wireless PTT controller on the handlebars can be pressed when the intercom is needed to talk through the headset Bluetooth headset wireless transmission.
The scheme allows riders to make normal calls on various communication systems while fully ensuring riding safety. Walkie-talkies, cell phones and PTT controllers can all be connected wirelessly. Helmet-mounted Bluetooth headphones have the function of high noise reduction, even a high-speed ride can keep a conversation going.

The kit includes an on-board speaker connector that can be plugged into the control panel of the on-board speaker for a police officer to talk wirelessly when the on-board speaker is required

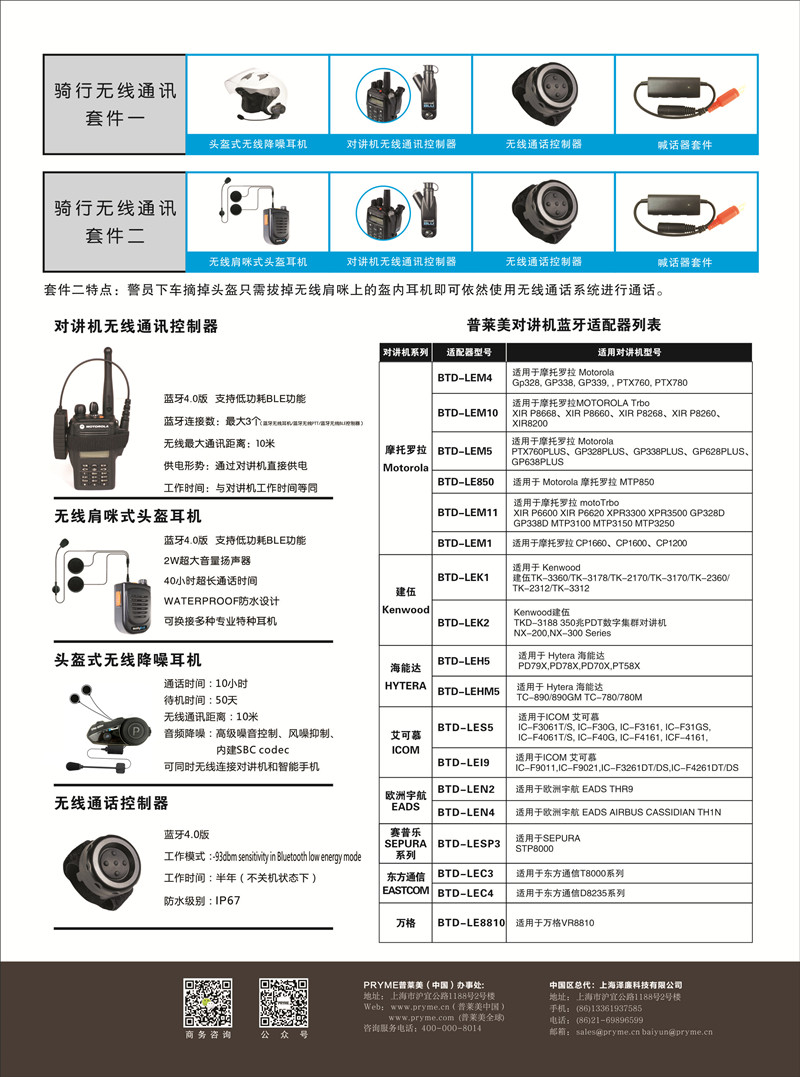

Package composition：



1.Wireless Bluetooth headset



2.Radios Bluetooth controller (depending on the model of the radios)



3.Ble Wireless PTT controller



4.Vehicle Speaker connector







Specification parameters：



Wireless Bluetooth headset headset

Models：SPM-800W
Call time：10小时
Standby time：50天
Radio Range：10米
Operating temperature： -15?C – 55?C
Output Power：1.5w
Weight：84g
Audio Noise Reduction: Advanced Noise Control, wind noise suppression, built-in SBC codec
Charging time：2.5 hours
Certification：CE/FCC/IC
Can be connected to both walkie-talkies and mobile phones





A Bluetooth controller for radios

Models：BTD-LE

BT ver ：4.2
Bluetooth adapter compliance specification: Bluetooth audio devices should conform to version 1.1 or higher
Radio Range：10m
Operating voltage：5-9V DC
Operating Current：13.5mA（Max 20mA）
Power supply: Radios interface power
Operating temperature：-20° C to 75° C
Storage temperature：-40° C to 150° C

BT BLE：Support

On-board voice output: support

Number of wireless connections supported: 3(Bluetooth audio device/Bluetooth wireless PTT/Bluetooth BLE wireless PTT)

Wired PTT control: support



BLE Wireless PTT controller
Models：PTT-Z

BT ver ：4.0 BLE
Output Power：2.4GHZ
Mode of operation：-93dbm sensitivity in Bluetooth low energy mode
Operating voltage：1.8v-3.6v
Power supply：CR2032
Working time: more than half a year (without shutdown)

Accessories: waterproof rubber cover
