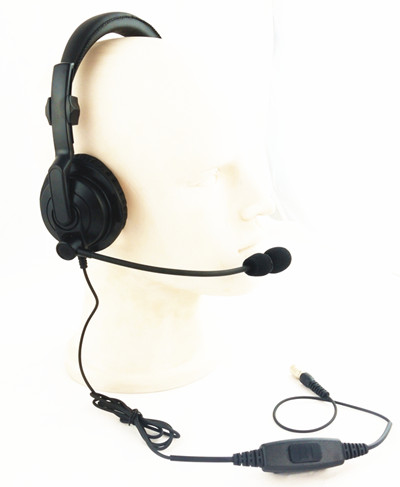

The PRYME HP24-S is a single-ear noise reduction headset. Equipped with advanced noise-reducing microphones, it can send sound clearly through walkie-talkies in high-noise environment, while high-quality mono-channel speakers can clearly transmit the voice of an external person speaking through the Radios into the ear, and ensure close personal communication.
Applicable to: Command Center desk, tactical service, etc.
Overview：
- ●Rugged, medium duty behind-the-head headset with flexible boom microphone
- ●Adjustable, padded headset allows for ideal fit and maximum comfort for long hours of use.
- ●Noise canceling boom mic
- ●Rugged polycarbonate PTT housing for maximum durability
- ●High-quality speaker allows for ideal receive audio.
- ●Remote PTT allows for multiple uses in the field.
- ●Reinforced strain relief gives unit maximum durability.
Specification parameters
Speaker parameters |
|
Specifications |
Outer Diameter 40mm |
Weight |
6.5 gram |
Materials |
Ferrite Materials Ferrite Size Φ18*4.05mm |
Impedance |
300Ω At around 1KHz |
| Rated power | Normal 10mW RMS Maximum 20mW |
Sensitivity |
155±5db |
Frequency response |
100Hz~10KHz |
| Output sound pressure level | 96±3dB /100mW /1cm With Artificial ear per channel |
| Average at 1.0K, 1.2K, 1.5K, 2.0KHz | |
Resonance |
100Hz |
Distortion |
5% Maximum at 1KHz /100mW /1cm |
| Load testing | 10mW RMS White noise for 48hrs |
Microphone parameters |
|
Type |
Noise Cancelling Condenser Mic. |
Shell material |
ABS |
Sensitivity |
-47±3dB (at L=50mm)(0dB=1V/Pa,1KHz) |
Impedance |
680Ω |
Frequency Range |
500Hz~8000Hz |
Average operating voltage |
1.5V |
| Max operating voltage | 10V |
Current |
Max. 0.4mA |
Sensitivity inhibition |
Within -3dB at 1V |
S/N ratio |
More than 60db |
| Cable | Mobility consign Cable |
Microphone parameters |
|
Type |
Noise Cancelling Dynamic Mic |
Shell material |
ABS |
Sensitivity |
-71.8±3dB (at L=50cm)(0dB=0.67V/Pa,1KHz) |
Impedance |
150Ω |
Frequency Range |
400Hz~6000Hz |
Average operating voltage |
1V |
Sensitivity inhibition |
Within -3dB at 1V |
Cable |
5 ft, 4.0Φ/Straight cord, PU shielded |
