BTH -800 wireless noise-canceling headset, wireless connection installed with the Plame Bluetooth adapter walkie-talkies and bluetooth-enabled mobile phones

• ●The earmuffs are made of imitation soft material, which can ensure the comfort of the wearer for a long time.
• ●The microphone is designed with replaceable, noise-reducing capacitor microphone M1021

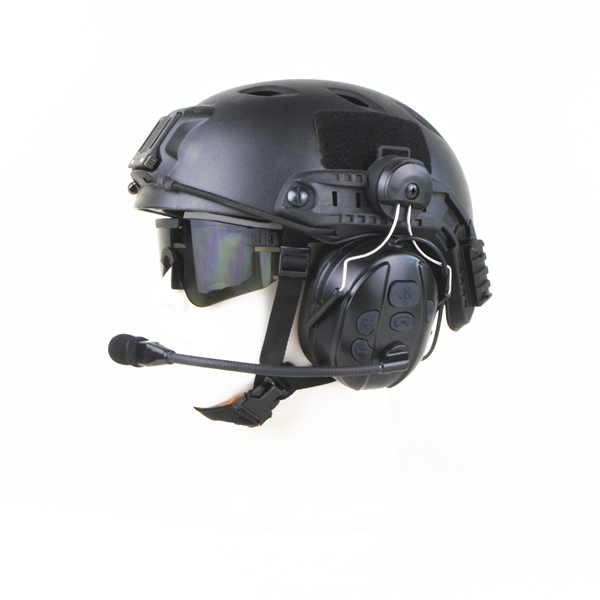

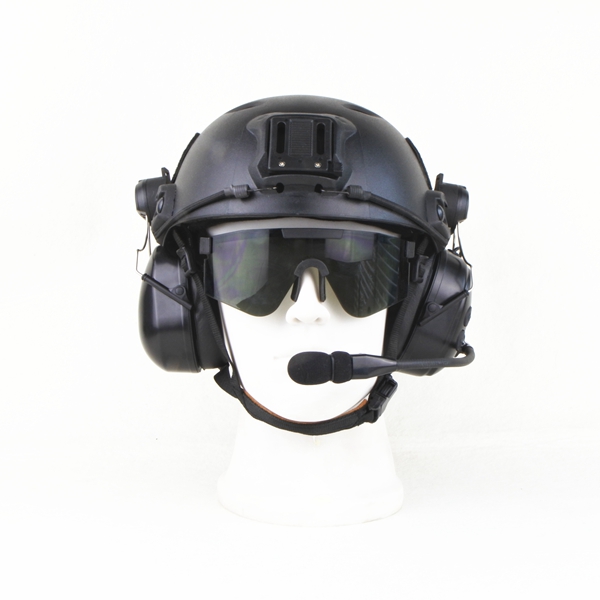

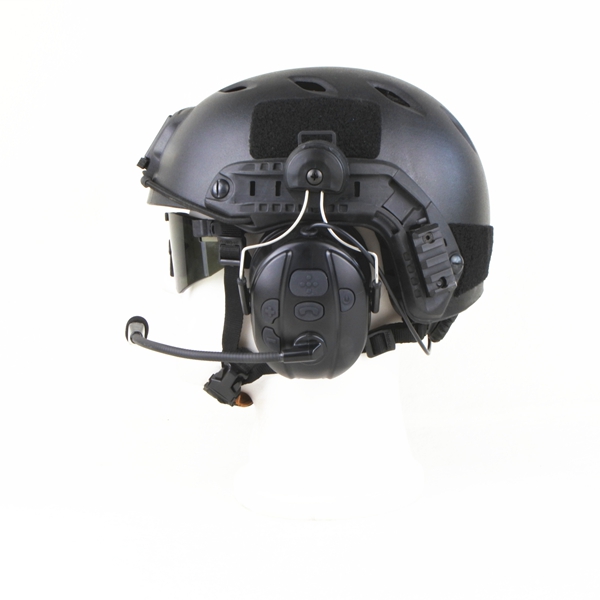

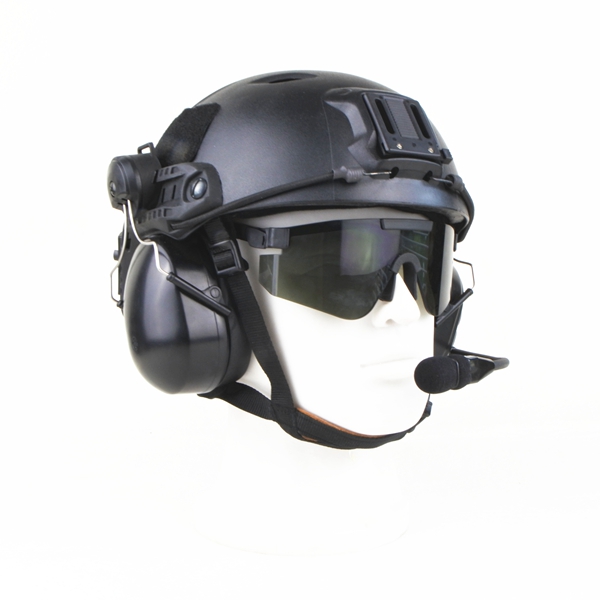

• ●Equipped with a variety of mounting fixtures, can be installed on the FAST combat helmet or helmet
• ●PTT call button provided on earmuffs
• ●The interphone connection adopts the wireless connection mode, after the completion of the pairing can be within 10 meters wireless listening and sending
• ●It can connect mobile phone wirelessly, and can connect mobile phone intercom POC system through protocol docking

●Model M1021 noise-canceling condenser microphone, can be replaced with a higher noise-canceling capacity amplifier circuit microphone M1022 or moving-coil microphone M1023/M1024



Applicable models：

BTH-800

It is suitable for all the Bluetooth adapters of PRYME adios



BTH-800-AZ

It is suitable for bluetooth-enabled mobile phones, and can open the interface to connect the PTT (PUSH-TO-TALK-RRB- call button through the protoHFP HFP or SPP



BTH-800-HY

Applicable to the built-in Bluetooth radios PD980/X1e/X1p/Z1p/PT580H of HYTERA

MD655/MD655G/MD785/MD785G/MD785G duplex



BTH-800-HW

Huawei built-in Bluetooth radio for the EP820 EP680 series



BTH-800-ZTE

ZTE built-in Bluetooth Radio PH790



BTH-800-SEP

Apply to all Sepura built-in Bluetooth walkie-talkies STP9000 STP9100 STP9200 SC20 SC21



BTH-800-Q9

It is suitable for Airbus Eads TPH700 series built-in I Bluetooth intercom



BTH-800-IC

For all of ICOM's built-in Bluetooth radios



BTH-800-KW

JVC Kenwood NX5000 Nx3000 series interphone with built-in Bluetooth function



BTH-800-FST

Standard Horizon SR720 interphone with built-in Bluetooth capability



BTH-800-HA

Harris XL-200 series interphone with built-in Bluetooth function



BTH-800-F50

It is suitable for EFJOHNSON VP5000 VP6000 series interphone with built-in Bluetooth function



BTH-800-MOTO

Motorola DM4XX1E, DP4XX1E, DP3441E, DP3661e ONLY! Series built-in Bluetooth function of the radios

You need to confirm the software version MOTOTRBO firmware version is R2.9.0
You need to confirm that authorization is installed HKVN4465 BT acc command license (purchase) and installed















规格参数：
