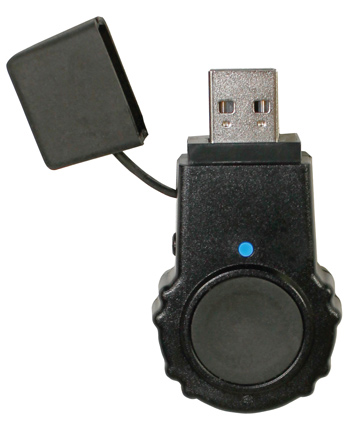

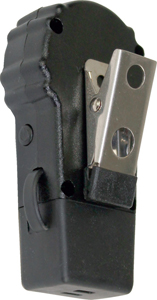

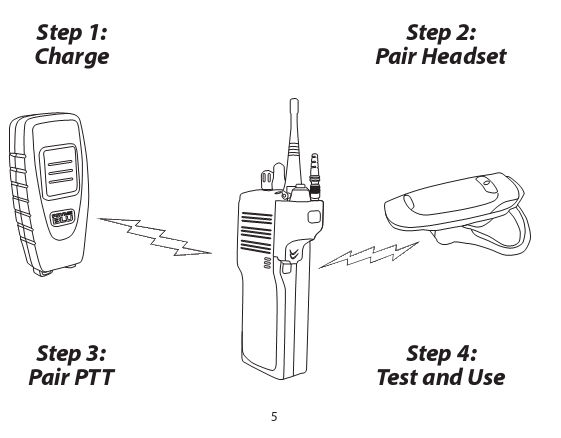

The PRYME Bluetooth PTT is a wireless PTT used in conjunction with the prime Bluetooth adapter (intercom call button) , which can be paired with the prime Bluetooth PTT and the Bluetooth headset after the prime Bluetooth adapter is installed in the intercom, after a good match can be achieved in the walkie-talkie all wireless control and listening. The fixing mode can be customized with nylon tape which can be fixed between the fingers of the hand or convenient position of the vehicle or fixed on the clothes with the back clip

BT-PTT2 comes with a built-in USB charging port and can be charged on any standard USB port.





































Applicable models：



BT-PTT2

It is suitable for all the Bluetooth adapters of PRYME radios



BT-PTT2-HY

Applicable to HYTERA built-in Bluetooth intercom PD980/X1e/X1p/Z1p/PT580H+

MD655/MD655G/MD785/MD785G/MD785G duplex



BT-PTT2-IC

For all of ICOM's built-in Bluetooth walkie-talkies



BT-PTT2-VKNX

It is suitable for Kenwood NX5000 series radios with built-in Bluetooth function



BT-PTT2-V7

It is suitable for Airbus Eads TPH700 series built-in I Bluetooth intercom



Meet the criteria：

-------- -- --



Specification parameters：

BT Version：2.1

BT follows specifications：BT Version 1.1 or higher

Number of BT connections：Max 2

Range (Typical):10 meters (30 feet)

Status Display：LED

Operating voltage：5-9V DC

Standby Current Draw：13.5mA（MAX 20mA）

Power mode：Built-in battery

Operating Temperature Range:-20° C to + 75° C

Storage Temperature Range ：-40° C to 150° C

Specifications：65mm(H) x 30mm(W) x 17mm (D)
