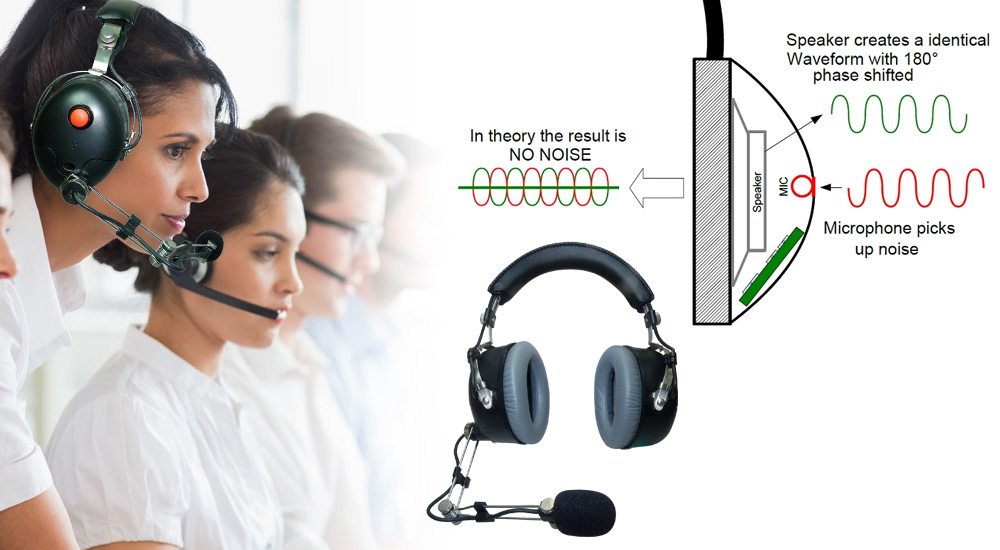

ANC01 active noise reduction headphones, using the world's leading INCTM noise reduction technology, ANC01 can reduce noise up to 92% , eliminate all sound even in high-noise environment, bring you a very quiet and comfortable hearing experience. Applies to firemen, military and police.
- ●The earmuffs are made of imitation soft material, which can ensure the comfort of the wearer for a long time.
- ●The microphone is designed with replaceable, noise-reducing capacitor microphone M1021
- ●It is equipped with steel headband, which can provide the necessary force to hold the earmuffs close to the ears. The ergonomic shaping makes the headband not contact the human body in use.

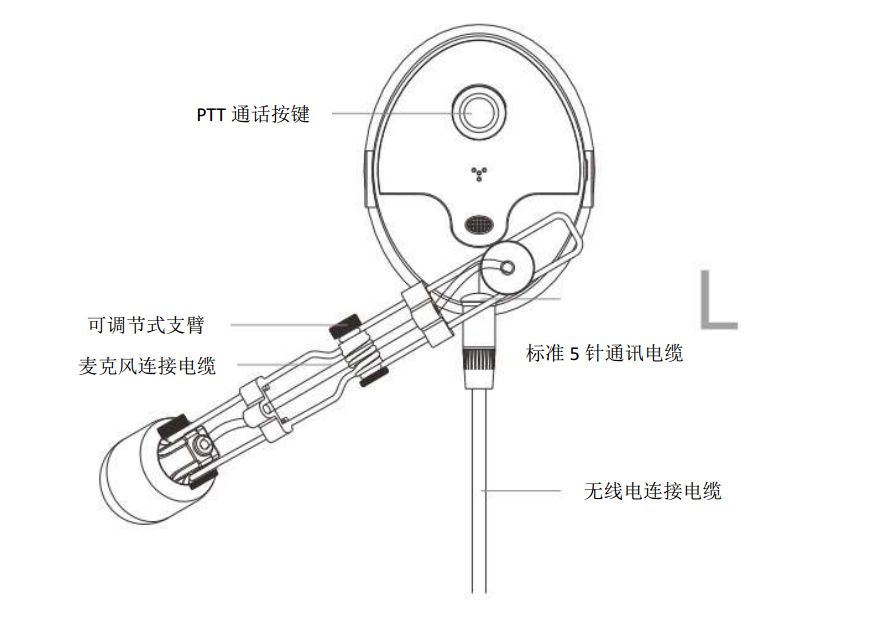

- ●A PTT -LRB-PUSH-TO--RRB-ALK) call button is provided on the earmuffs
- ●The interphone connection adopts fast-installed communication cable, 5-pin fast connector is built in the earphone, corresponding communication cable can be equipped according to the interphone interface
- ●By extending the HP series headphones from the premex PTT11P-V suite, support can be extended to tactical noise-canceling headphones with command PTT and large chest PTT functions
●Model M1021 noise-canceling condenser microphone, can be replaced by high resistance condenser microphone M1022 or moving coil microphone M1023/M1024
●The ANC01 can be instantly upgraded to Bluetooth wireless noise-canceling headphones by plugging in a primetime bth -300 Bluetooth extension adapter to work with walkie-talkies or cell phones.
●The headset is made of all metal stainless steel

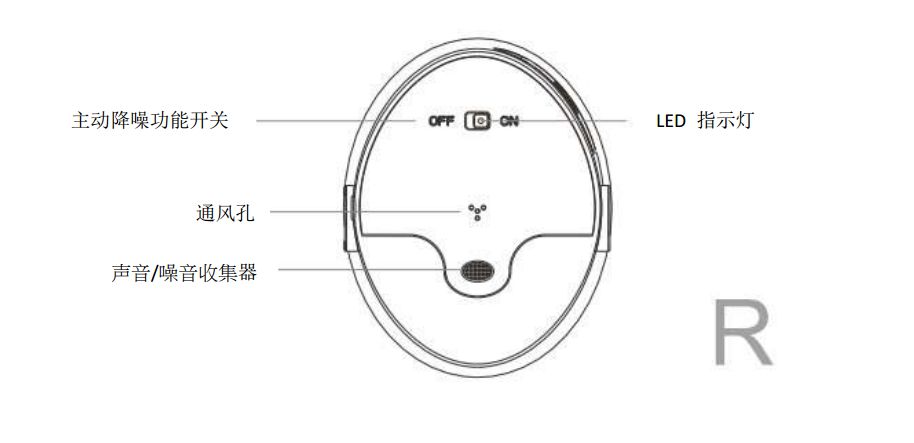

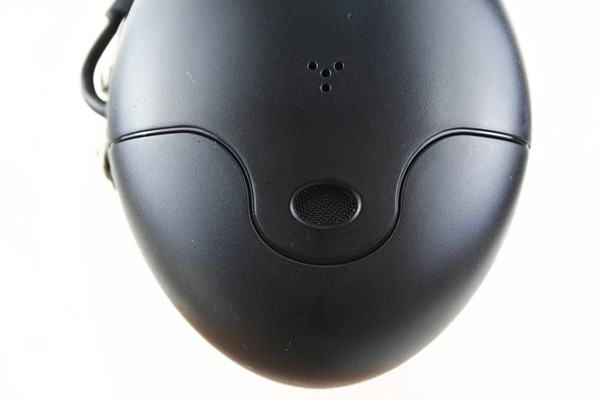

●The sound collection sensor is set again inside the left ear mask

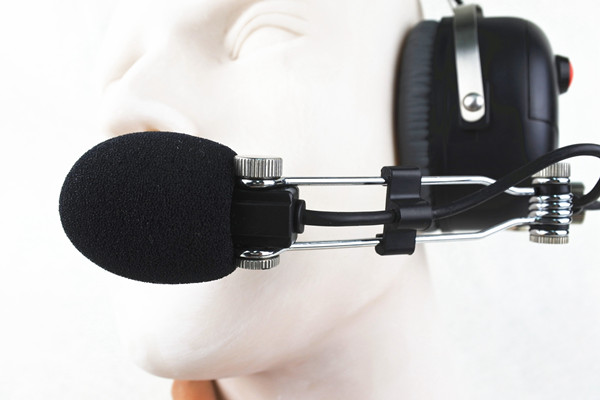

●Noise-reducing microphone adopts metal bracket
Specification parameters：
Product name |
Active noise reduction headphones |
Model |
ANC01 |
Earphone type |
Active noise reduction |
Form of wearing |
Headwear |
Power supply mode |
Standard AAA alkaline battery |
Operating Current |
≦12mA |
Length of communication cable |
Length: 1.2M |
Communication interface |
Standard Radio Interface or custom interface |
Frequency response range |
20Hz ~ 18KHz |
Sensitivity difference (left & right) |
Less than 3dB(at 1KHz 1mw) |
Closed-loop voltage gain |
6dB F=400Hz |
Antenna isolation |
≧45dB Po=1mW F=1KHz |
S/N rate |
< -95dB |
Impedance |
32-500 ohm (power off) |
Output Power |
≧40mW THD=10% F = 1KHz |
Total harmonic distortion |
≦1% F=1KHz Po=1mW |
De-noising parameters |
≧ 24 dB 92% |
Dimensions and specifications |
200*180*83mm |
Weight |
373g(Headphones only) 513g(PTT controller and Cable) |
Lights |
The lamp lights up when working and flickers when the voltage is low |
